1/0 AWG
-
#2 AWG
-
1/0 AWG
-
2/0 AWG
-
3/0 AWG
-
4/0 AWG
-
250 kcmil
-
300 kcmil
-
350 kcmil
-
400 kcmil
-
500 kcmil
-
600 kcmil
-
700 kcmil
-
750 kcmil
Material:
Aluminium
Aluminium
| Manufacturer | Color | Code | Tools Model |
| T&B | Tan | 50 | TBM8, TBM15BSCR |
| Panduit | Tan | P50 | CT-720, CT-920 |
| Burndy | Tan | 296 | Y39, Y45 |

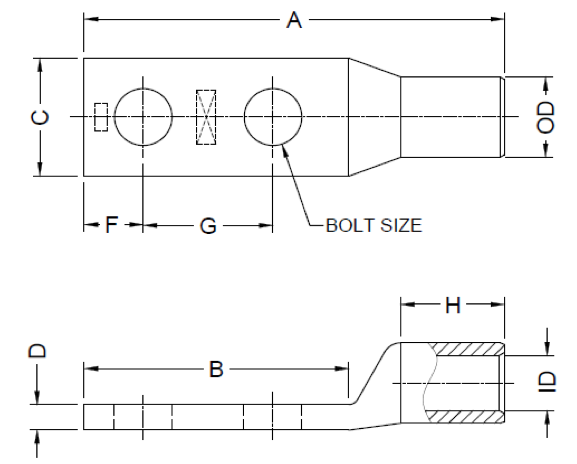

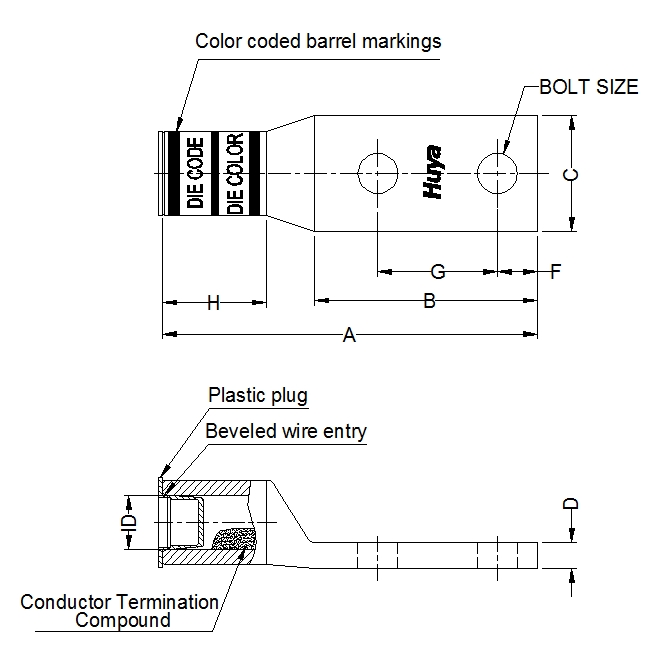

| Item | Cat.No | Wire Size | Dimension (in.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Bolt Size | A | B | C | D | F | G | ID | OD | H | ||
| 1 | AL103801 | 1/0 AWG | 3/8 | 3.40 | 1.90 | 0.88 | 0.20 | 0.38 | 1.00 | 0.41 | 0.62 | 1.15 |
| 2 | AL103843-52 | 1/0 AWG | 3/8 | 5.16 | 3.26 | 0.88 | 0.25 | 0.63 | 1.75 | 0.39 | 0.64 | 1.55 |
| 3 | AL103843-62 | 1/0 AWG | 3/8 | 3.64 | 2.24 | 0.82 | 0.21 | 0.63 | 1.00 | 0.39 | 0.60 | 1.05 |
| 4 | AL101243-62 | 1/0 AWG | 1/2 | 4.41 | 3.01 | 0.82 | 0.21 | 0.63 | 1.75 | 0.39 | 0.60 | 1.05 |
