1. Compression Connectors
  2. One hole 0°
  3. #14-#10

#14-#10

One-Hole Lugs-0° 600V to 35KV

Material:
High-Conductivity Wrought Copper
Finish:
Electro Tin Plate
Manufacturer Color Code Tools Model
T&B -- - ERG2002
Panduit -- - CT-100
Burndy -- - Y8MRB-1

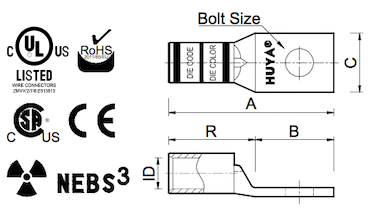

Item Cat.No Wire Size Dimension (in.)
Code Flex Class G,H,I,K,M Bolt Size A B C R ID
1 DA1408 14-10 AWG - #8 1.33 0.68 0.36 0.65 0.13
2 DA1414 14-10 AWG - 1/4 1.33 0.68 0.41 0.65 0.13
3 DA1414-242 14-10 AWG - 1/4 1.46 0.81 0.50 0.65 0.13
4 DA1410-250 14-10 AWG - #10 1.07 0.54 0.38 0.53 0.13
5 DA1414-250 14-10 AWG - 1/4 1.15 0.62 0.42 0.53 0.13
6 DA1456-250 14-10 AWG - 5/16 1.27 0.74 0.54 0.53 0.13
7 DA1438-250 14-10 AWG - 3/8 1.37 0.84 0.56 0.53 0.13
8 DA1410-260 14-10 AWG - 8-10 1.08 0.52 0.38 0.56 0.13
9 DA1456-260 14-10 AWG - 5/16 1.23 0.70 0.53 0.53 0.13
10 DA1414-260 14-10 AWG - 1/4 1.20 0.64 0.47 0.56 0.13
11 DA1438-260 14-10 AWG - 3/8 1.36 0.83 0.56 0.53 0.13
12 WP1408-093 14-10 AWG - 8-10 1.18 0.65 0.40 0.53 0.13
13 WP1414-094 14-10 AWG - 1/4 1.18 0.65 0.41 0.53 0.13
