185 mm²
Detailed technical specifications, reference attributes, and supporting compliance documents for 185 mm².
Category Variants
Explore Nearby Options
Material:
High-Conductivity Wrought Copper
High-Conductivity Wrought Copper
Finish:
Electro Tin Plate
Electro Tin Plate
| Manufacturer | Color | Code | Tools Model |
| T&B | -- | 37 | TBM62 BPLT14 |
| Panduit | -- | P76 | CT-2001 CT-930 |
| Burndy | -- | 18 | PAT600 Y35 |
| Celestra | -- | 37 | A45 |
Specifications
Product Table
Compare the available part numbers, dimensions, and supporting data for this category.
Click Cat.No to expand product details.

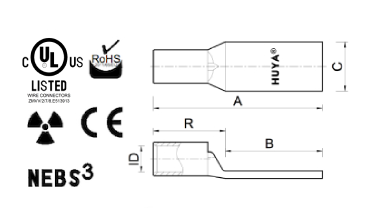

| Item | Cat.No | Wire Size (mm²) | Dimension (mm) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | R | ID | |||
| 1 | MC1800NH-250 | 185.00 | 121.50 | 80.10 | 33.50 | 40.90 | 18.60 |
| 2 | MC1800NH-251 | 185.00 | 131.00 | 80.00 | 37.50 | 47.70 | 20.80 |
| 3 | MC1800NH-252 | 185.00 | 152.50 | 83.00 | 33.50 | 69.00 | 18.60 |
