35mm
Detailed technical specifications, reference attributes, and supporting compliance documents for 35mm.
Category Variants
Explore Nearby Options
Material:
HIGH CONDUCTIVITY WROUGHT COPPER.
HIGH CONDUCTIVITY WROUGHT COPPER.
Finish:
ELECTRO-TIN PLATE.
ELECTRO-TIN PLATE.
Specifications
Product Table
Compare the available part numbers, dimensions, and supporting data for this category.
Click Cat.No to expand product details.

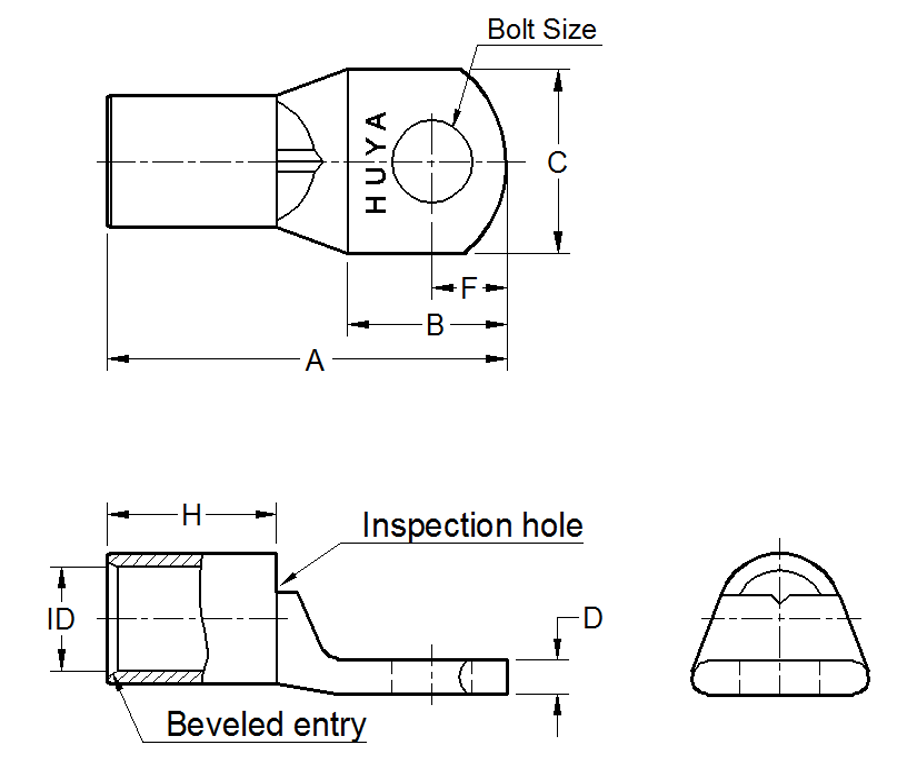

| Item | Cat.No | Wire Size (mm²) | Bolt Size | Dimension (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | F | H | ID | ||||
| 1 | KC3505 | 35.00 | M5 | 31.50 | 12.50 | 16.00 | 2.70 | 6.00 | 12.00 | 8.50 |
| 2 | KC3506 | 35.00 | M6 | 32.00 | 13.00 | 16.00 | 2.70 | 6.00 | 12.00 | 8.50 |
| 3 | KC3508 | 35.00 | M8 | 36.00 | 17.00 | 16.00 | 2.70 | 8.00 | 12.00 | 8.50 |
| 4 | KC3510 | 35.00 | M10 | 40.00 | 21.00 | 17.00 | 2.50 | 10.00 | 12.00 | 8.50 |
| 5 | KC3512 | 35.00 | M12 | 45.00 | 26.00 | 19.00 | 2.40 | 12.00 | 12.00 | 8.50 |
