300 Kcmil
Detailed technical specifications, reference attributes, and supporting compliance documents for 300 Kcmil.
Category Variants
Explore Nearby Options
Material:
Aluminium Alloy
Aluminium Alloy
Finish:
Electro Tin Plate
Electro Tin Plate
| Manufacturer | Color | Code | Tools Model |
| T&B | Blue | 76 | TBM8, TBM15BSCR |
| Panduit | Blue | P76 | CT-720, CT-920 |
| Burndy | Blue | 470 | Y39, Y45 |
Specifications
Product Table
Compare the available part numbers, dimensions, and supporting data for this category.
Click Cat.No to expand product details.

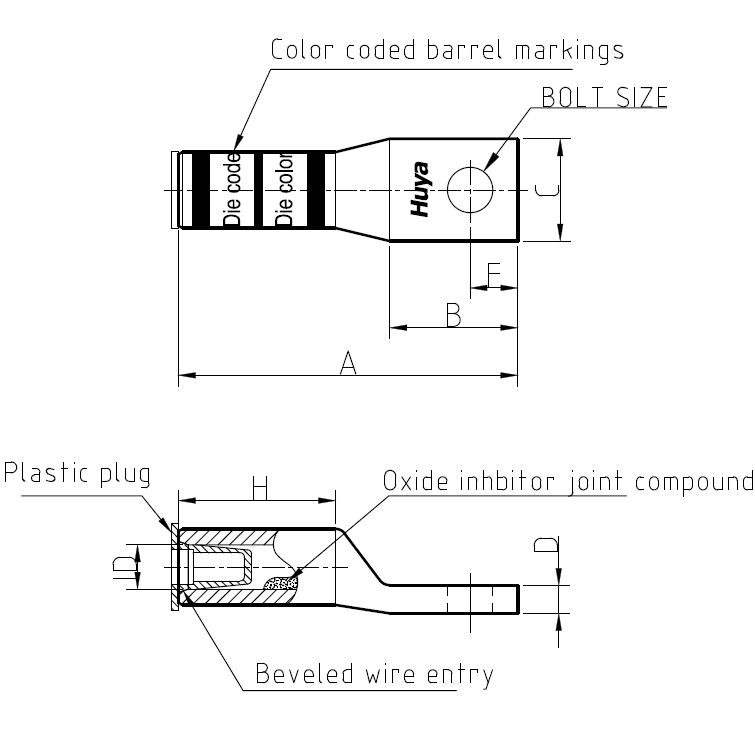

| Item | Cat.No | Wire Size | Dimension (in.) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Bolt Size | A | B | C | D | F | ID | H | ||
| 1 | AL3112 | 300 Kcmil | 1/2 | 3.88 | 1.25 | 1.39 | 0.28 | 0.50 | 0.71 | 1.93 |
| 2 | AL3112-52 | 300 kcmil | 1/2 | 4.27 | 1.31 | 1.39 | 0.36 | 0.62 | 0.65 | 2.25 |
| 3 | AL3112-62 | 300 kcmil | 1/2 | 3.60 | 1.37 | 1.38 | 0.36 | 0.63. | 0.65 | 1.53 |
| 4 | AL3138 | 300 Kcmil | 3/8 | 3.56 | 0.93 | 1.39 | 0.28 | 0.38 | 0.71 | 1.93 |
| 5 | AL3138-52 | 300 kcmil | 3/8 | 4.27 | 1.31 | 1.39 | 0.36 | 0.62 | 0.65 | 2.25 |
| 6 | AL3138-62 | 300 kcmil | 3/8 | 3.60 | 1.37 | 1.38 | 0.36 | 0.63 | 0.65 | 1.53 |
| 7 | AL3156 | 300 Kcmil | 5/16 | 3.51 | 0.88 | 1.39 | 0.28 | 0.38 | 0.71 | 1.93 |
