COPPER MECHANICAL LUGS
Material:
COPPER,STEEL,ZINC PLATED
COPPER,STEEL,ZINC PLATED
Finish:
TIN pLATED mil-t-10727
TIN pLATED mil-t-10727
maxiumum elecrical
rating:
USE UP TO 600V,90°C
USE UP TO 600V,90°C

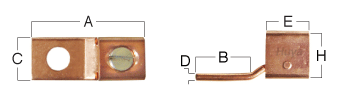

| Item | Cat.No | Wire Range | Bolt Size | Hex Size | Dimensions (in.) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | H | |||||
| 1 | CM0614 | #14-#6 | 3/16 | SLOT | 1.02 | 0.44 | 0.38 | 0.07 | 0.38 | 0.48 |
| 2 | CM0414 | #14-#4 | 1/4 | SLOT | 1.27 | 0.59 | 0.50 | 0.08 | 0.50 | 0.57 |
| 3 | CM1004 | #4-#1/0 | 1/4 | SLOT | 1.53 | 0.84 | 0.62 | 0.13 | 0.62 | 0.77 |
| 4 | CM4002 | #2-#4/0 | 5/16 | 9/16 | 2.19 | 1.06 | 1.00 | 0.13 | 1.00 | 1.13 |
| 5 | CM5140 | #4/0-500 | 3/8 | 3/4 | 3.16 | 1.69 | 1.50 | 0.19 | 1.38 | 1.65 |
| 6 | CM0614T | #14-#6 | 3/16 | SLOT | 1.02 | 0.44 | 0.38 | 0.07 | 0.38 | 0.48 |
| 7 | CM0414T | #14-#4 | 1/4 | SLOT | 1.27 | 0.59 | 0.50 | 0.08 | 0.50 | 0.57 |
| 8 | CM1004T | #4-#1/0 | 1/4 | SLOT | 1.53 | 0.84 | 0.62 | 0.13 | 0.62 | 0.77 |
| 9 | CM4002T | #2-#4/0 | 5/6 | 9/16 | 2.19 | 1.06 | 1.00 | 0.13 | 1.00 | 1.13 |
| 10 | CM5140T | #4/0-500 | 3/8 | 3/4 | 3.16 | 1.69 | 1.50 | 0.19 | 1.38 | 1.65 |
