AM-12

ALUMINUM MECHANICAL LUGS

Material:
ALUMINUM, TIN PLATED

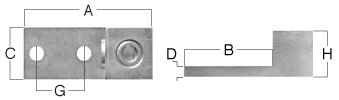

Item Cat.No Wire Range Bolt Size Hex Size Dimensions (in.)
A B C D G H
1 AM3506-12 #6 AWG - 350 kcmil 1/2 3/8 4.19 3.06 1.12 0.24 1.75 1.24
2 AM6104-12 #4 AWG – 600 kcmil 1/2 1/2 4.69 3.31 1.49 0.43 1.75 1.55
3 AM8135-12 350 kcmil – 800 kcmil 1/2 3/8 6.19 3.44 1.74 0.55 1.75 1.87
