ALUMINUM MECHANICAL LUGS
Material:
ALUMINUM, TIN PLATED
ALUMINUM, TIN PLATED
Finish:
Tin Plated MIL-T-10727.
Tin Plated MIL-T-10727.

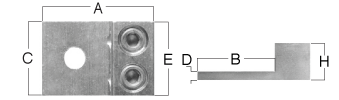

| Item | Cat.No | Wire Range | Bolt Size | Hex Size | Dimensions (in.) | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | H | |||||
| 1 | AM1014-21 | #14 AWG - 1/0 AWG | 1/4 | SLOT | 1.47 | 0.85 | 1.19 | 0.18 | 0.80 |
| 2 | AM2014-21 | #14 AWG – 2/0 AWG | 1/4 | SLOT | 1.47 | 0.85 | 1.19 | 0.18 | 0.80 |
| 3 | AM2506-21 | #6 AWG – 250 kcmil | 3/8 | 3/8 | 2.56 | 1.56 | 1.49 | 0.24 | 1.18 |
| 4 | AM3506-21 | #6 AWG – 350 kcmil | 1/2 | 3/8 | 2.88 | 1.75 | 1.74 | 0.24 | 1.24 |
| 5 | AM6104-21 | #4 AWG – 600 kcmil | 1/2 | 1/2 | 3.13 | 1.75 | 1.99 | 0.43 | 1.55 |
| 6 | AM8135-21 | 350 kcmil – 800 kcmil | 5/8 | 7/16 | 3.50 | 2.00 | 2.80 | 0.49 | 1.68 |
| 7 | AM1151-21 | 500 kcmil – 1000 kcmil | 5/8 | 3/8 | 3.50 | 2.00 | 2.80 | 0.49 | 1.68 |
