CM-12
Detailed technical specifications, reference attributes, and supporting compliance documents for CM-12.
Category Variants
Explore Nearby Options
COPPER MECHANICAL LUGS
Material:
COPPER,STEEL,ZING PLATED
COPPER,STEEL,ZING PLATED
Specifications
Product Table
Compare the available part numbers, dimensions, and supporting data for this category.
Click Cat.No to expand product details.

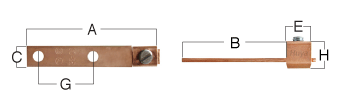

| Item | Cat.No | Wire Range | Bolt Size | Hex Size | Dimensions (in.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | G | H | |||||
| 1 | CM021201 | 12-2 | 1/4 | SLOT | 2.26 | 1.63 | 0.50 | 0.09 | 0.50 | 1.00 | 0.65 |
| 2 | CM061401 | 14-6 | 3/16 | SLOT | 2.13 | 1.60 | 0.38 | 0.07 | 0.44 | 1.00 | 0.52 |
| 3 | CM116143 | 600–1000 | 1/2 | 1.125 | 6.88 | 4.69 | 2.00 | 0.25 | 1.88 | 1.75 | 2.34 |
| 4 | CM200801 | #8–2/0 | 1/4 | SLOT | 2.94 | 1.88 | 0.62 | 0.13 | 0.62 | 1.00 | 0.88 |
| 5 | CM350101 | #1–350 | 3/8 | 3/4 | 4.94 | 3.32 | 1.00 | 0.19 | 1.23 | 1.00 | 1.39 |
| 6 | CM400601 | #6–4/0 | 5/16 | 5/8 | 3.38 | 2.13 | 1.00 | 0.13 | 1.00 | 1.00 | 1.17 |
| 7 | CM511043 | 1/0–500 | 3/8 | 3/4 | 5.62 | 3.57 | 1.50 | 0.19 | 1.50 | 1.75 | 1.56 |
