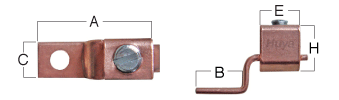

COPPER MECHANICAL LUGS
Material:
COPPER,STEEL,ZINC PLATED
COPPER,STEEL,ZINC PLATED
Finish:
TIN pLATED mil-t-10727
TIN pLATED mil-t-10727
maxiumum elecrical
rating:
USE UP TO 600V,90°C
USE UP TO 600V,90°C
| Item | Cat.No | Wire Range | Bolt Size | Hex Size | Dimensions (in.) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | H | |||||
| 1 | CM1014B | #14-#10 | 1/8 | SLOT | 1.00 | 0.44 | 0.32 | 0.07 | 0.28 | 0.37 |
| 2 | CM0614B | #14-#6 | 3/16 | SLOT | 1.19 | 0.47 | 0.38 | 0.07 | 0.44 | 0.52 |
| 3 | CM0414B | #14-#4 | 1/4 | SLOT | 1.31 | 0.57 | 0.50 | 0.08 | 0.43 | 0.58 |
| 4 | CM0212B | #12-#2 | 1/4 | SLOT | 1.55 | 0.66 | 0.50 | 0.09 | 0.49 | 0.65 |
| 5 | CM1002B | #2-#1/0 | 1/4 | SLOT | 1.97 | 0.93 | 0.63 | 0.13 | 0.62 | 0.88 |
| 6 | CM3004B | #4-#3/0 | 3/8 | 5/16 | 2.19 | 0.94 | 0.75 | 0.16 | 0.74 | 1.04 |
| 7 | CM4006B | #6-#4/0 | 5/16 | 5/8 | 2.38 | 1.06 | 1.00 | 0.13 | 1.00 | 1.17 |
| 8 | CM3501B | #1-#350 | 3/8 | 3/4 | 3.16 | 1.50 | 1.00 | 0.19 | 1.23 | 1.41 |
| 9 | CM5110B | #1/0-#500 | 3/8 | 3/4 | 4.25 | 2.02 | 1.50 | 0.19 | 1.50 | 1.57 |
| 10 | CM1161B | 600-1000 | 1/2 | 1.125 | 4.63 | 2.04 | 2.00 | 0.25 | 1.84 | 2.34 |
