ALUMINUM MECHANICAL LUGS

Material:
ALUMINUM, TIN PLATED

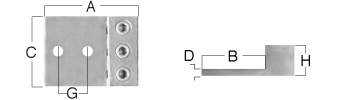

Item Cat.No Wire Range Bolt Size Hex Size Dimensions (in.)
A B C D G H
1 AM0214-32 #14 AWG - #2 AWG 5/16 SLOT 2.49 2.03 1.62 0.18 0.87 0.46
2 AM1012-32 #12 AWG – 1/0 AWG 3/8 SLOT 2.94 2.31 1.93 0.18 1.00 0.62
3 AM3006-32 #6 AWG – 3/0 AWG 1/2 1/4 4.19 3.38 2.80 0.24 1.75 0.80
4 AM2506-32 #6 AWG – 250 kcmil 1/2 5/16 4.19 3.06 2.80 0.24 1.75 1.24
5 AM3506-32 #6 AWG – 350 kcmil 1/2 5/16 4.19 3.06 2.99 0.24 1.75 1.24
6 AM6102-32 #2 AWG – 600 kcmil 1/2 1/2 4.69 3.31 3.74 0.43 1.75 1.55
7 AM8135-62 350 kcmil – 800 kcmil 1/2 3/8 6.19 3.44 4.24 0.55 1.75 1.87
8 AM1151-62 500 kcmil – 1000 kcmil 1/2 3/8 6.19 3.44 4.74 0.55 1.75 1.87
