ALUMINUM MECHANICAL LUGS

Material:
ALUMINUM, TIN PLATED
Finish:
Tin Plated MIL-T-10727.

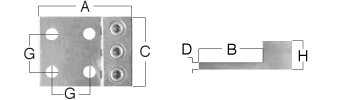

Item Cat.No Wire Range Bolt Size Hex Size Dimensions (in.)
A B C D G H
1 AM3006-34 #6 AWG - 3/0 AWG 1/2 1/4 4.19 3.38 2.80 0.24 1.75 0.80
2 AM2506-34 #6 AWG – 250 kcmil 1/2 1/4 4.19 3.07 2.80 0.24 1.75 1.24
3 AM3506-34 #6 AWG – 350 kcmil 1/2 5/16 4.19 3.06 2.99 0.24 1.75 1.24
4 AM6102-34 #2 AWG – 600 kcmil 1/2 3/8 4.69 3.31 3.74 0.43 1.75 1.55
5 AM8135-64 350 kcmil – 800 kcmil 1/2 3/8 6.19 3.44 4.24 0.55 1.75 1.87
6 AM1151-64 500 kcmil – 1000 kcmil 1/2 9/16 6.19 3.44 4.74 0.55 1.75 1.87
