AM-11

ALUMINUM MECHANICAL LUGS

Material:
ALUMINUM, TIN PLATED

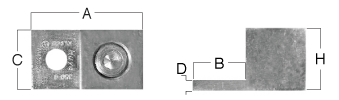

Item Cat.No Wire Range Bolt Size Hex Size Dimensions (in.)
A B C D H
1 AM0614 #14 AWG - #6 AWG 1/4 SLOT 1.06 0.69 0.37 0.08 0.49
2 AM0214 #14 AWG – #2 AWG 1/4 SLOT 1.16 0.69 0.49 0.08 0.55
3 AM1014 #14 AWG – 1/0 AWG 1/4 SLOT 1.47 0.85 0.61 0.18 0.80
4 AM2014 #14 AWG – 2/0 AWG 1/4 SLOT 1.47 0.85 0.61 0.18 0.80
5 AM2506 #6 AWG – 250 kcmil 5/16 3/8 2.00 1.00 0.89 0.21 1.05
6 AM3106 #6 AWG – 300 kcmil 5/16 3/8 2.00 1.00 0.89 0.21 1.05
7 AM3506 #6 AWG – 350 kcmil 3/8 3/8 2.25 1.13 1.12 0.24 1.24
8 AM5104 #4 AWG – 500 kcmil 3/8 1/2 2.75 1.50 1.37 0.3 1.49
9 AM6104 #4 AWG – 600 kcmil 3/8 1/2 2.75 1.50 1.37 0.30 1.49
10 AM6104A #4 AWG – 600 kcmil or (2)1/0 AWG– 250 kcmil 3/8 1/2 2.81 1.50 1.37 0.30 1.80
11 AM8135 350 kcmil – 800 kcmil 5/8 9/16 3.38 1.75 1.62 0.37 1.93
12 AM1151 500 kcmil – 1000 kcmil 5/8 9/16 3.50 1.75 1.74 0.43 2.12
