AM-22S
Detailed technical specifications, reference attributes, and supporting compliance documents for AM-22S.
Category Variants
Explore Nearby Options
ALUMINUM MECHANICAL LUGS
Material:
ALUMINUM, TIN PLATED
ALUMINUM, TIN PLATED
Finish:
Tin Plated MIL-T-10727.
Tin Plated MIL-T-10727.
Specifications
Product Table
Compare the available part numbers, dimensions, and supporting data for this category.
Click Cat.No to expand product details.

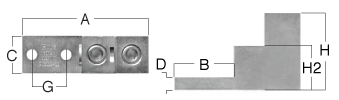

| Item | Cat.No | Wire Range | Bolt Size | Hex Size | Dimensions (in.) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | G | H | |||||
| 1 | AM5140-22S | 4/0 AWG – 500 kcmil | 1/4 | 3/8 | 2.91 | 1.69 | 1.43 | 0.62 | 0.69 | 2.37 |
| 2 | AM6102-22S | #2 AWG - 600 kcmil | 3/8 | 1/2 | 4.91 | 2.34 | 1.49 | 0.74 | 1.38 | 2.99 |
| 3 | AM7530-22S | 3/0 AWG – 750 kcmil | 3/8 | 1/2 | 4.91 | 2.34 | 1.49 | 0.74 | 1.38 | 2.99 |
