COPPER MECHANICAL LUGS
Material:
COPPER,STEEL,ZING PLATED
COPPER,STEEL,ZING PLATED

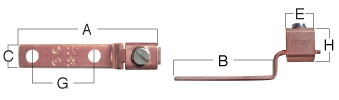

| Item | Cat.No | Wire Range | Bolt Size | Hex Size | Dimensions (in.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | G | H | |||||
| 1 | CM061401B | 14-6 | 3/16 | SLOT | 2.19 | 1.50 | 0.38 | 0.07 | 0.44 | 1.00 | 0.52 |
| 2 | CM011201B | #12-#1 | 1/4 | SLOT | 2.50 | 1.66 | 0.50 | 0.09 | 0.50 | 1.00 | 0.65 |
| 3 | CM100201B | #2-#1/0 | 1/4 | SLOT | 2.97 | 1.88 | 0.63 | 0.13 | 0.63 | 1.00 | 0.88 |
| 4 | CM400601B | #6-#4/0 | 5/16 | 5/8 | 3.62 | 2.27 | 1.00 | 0.13 | 1.00 | 1.00 | 1.12 |
| 5 | CM350187B | #1-350 | 3/8 | 3/4 | 5.69 | 4.01 | 1.00 | 0.19 | 1.23 | 1.87 | 1.39 |
| 6 | CM511043B | #1/0-500 | 3/8 | 3/4 | 6.00 | 3.77 | 1.50 | 0.19 | 1.53 | 1.75 | 1.56 |
| 7 | CM116143B | 600-1000 | 1/2 | 1.125 | 6.25 | 3.69 | 2.00 | 0.25 | 1.88 | 1.75 | 2.34 |
